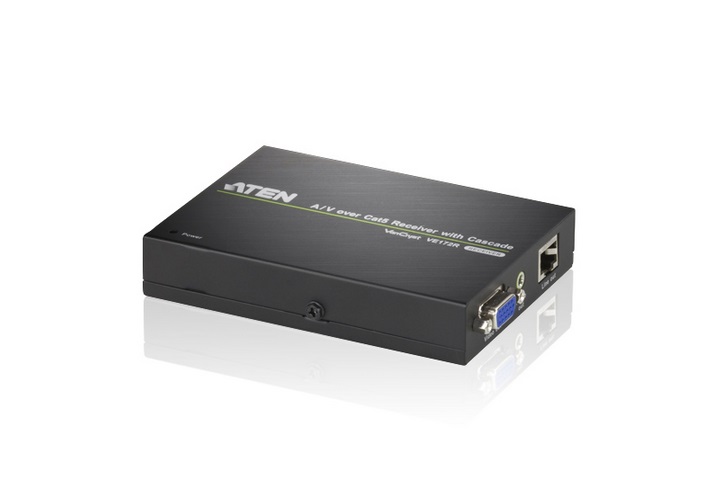

VE172R A/V Over Cat 5 Receiver is compatible with ATEN MDS Standard Plus Solution (VS1204T/VS1208T, VE170T/VE170R/VE170RQ). It can cascade up to 10 levels make long distance transmissions up to 150m.

Compatible Transmitter Units:

• VE170T A/V Over Cat 5 Transmitter
• VS1204T A/V Over Cat 5 Transmitter
• VS1208T A/V Over Cat 5 Transmitter

Compatible Receiver Units:

• VE172R A/V Over Cat 5 Receiver with Cascade
• VE170R A/V Over Cat 5 Receiver
• VE170RQ A/V Over Cat 5 Receiver with Deskew

FEATURES

• Uses Cat 5e cable to connect the transmitter and receiver uints
• Cascadable up to 10 levels
• Long distance transmission up to 150m
• Superior video quality – 1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (100 m); 1280x1024@ 60Hz (150 m)
• Audio enabled (mono)

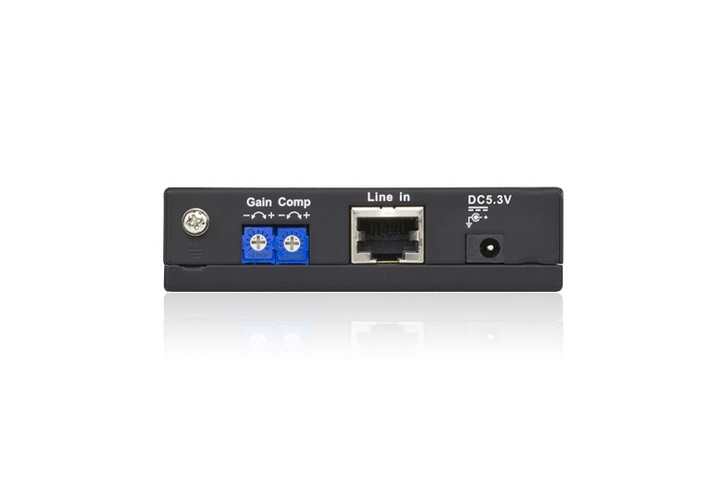

• Adjustable gain/compensation control – manually adjusts signal strength to compensate for distance
• Built-in 8KV/15KV ESD protection
• Rack-mountable
• Complies with VESA FDMI mount standard

DIAGRAM

SPECIFICATION
