Spec Sheet

HDBaseT-Lite Receiver (ตัวรับ) ที่มี Scaler ในตัว (เมื่อใช้ร่วมกับ VM8514) สามารถใช้ร่วมกับ ATEN HDMI HDBaseT products เพื่อขยาย HDMI ได้ไกลสูงสุด 60 m จากต้นทางด้วยสาย Cat 5e/6a เพียงเส้นเดียว

คุณสมบัติ

• HDBaseT Connectivity – extends the connection between the VM8514 HDBaseT outputs and an HDMI display over a long distance via single Cat 5e/6a cable
• HDBaseT Anti-jamming – resists signal interference during high quality video transmissions using HDBaseT technology
• Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
• Scaler – features a scaling function to integrate a video wall seamlessly with various output formats
• Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions*
• Video Wall – features configurable video wall profiles available for custom screen layouts via simple point-n-click web GUI*
• Bi-directional IR channel – IR transmission is processed one direction at a time**
• Rack-mountable

Note:
* The Seamless Switch™ and video wall functions are available when the VE805R is used with the VM8514.
** Supports full frequency IR signals from 30KHz to 60KHz; however the IR receiver cable included with the package only supports 30KHz to 56 KHz.

ผังการต่อ

ข้อมูลจำเพาะ

• * The specification and pictures are subject to change without notice.
• * All trademarks and logos are the properties of their respective holders.

อุปกรณ์ในกล่อง

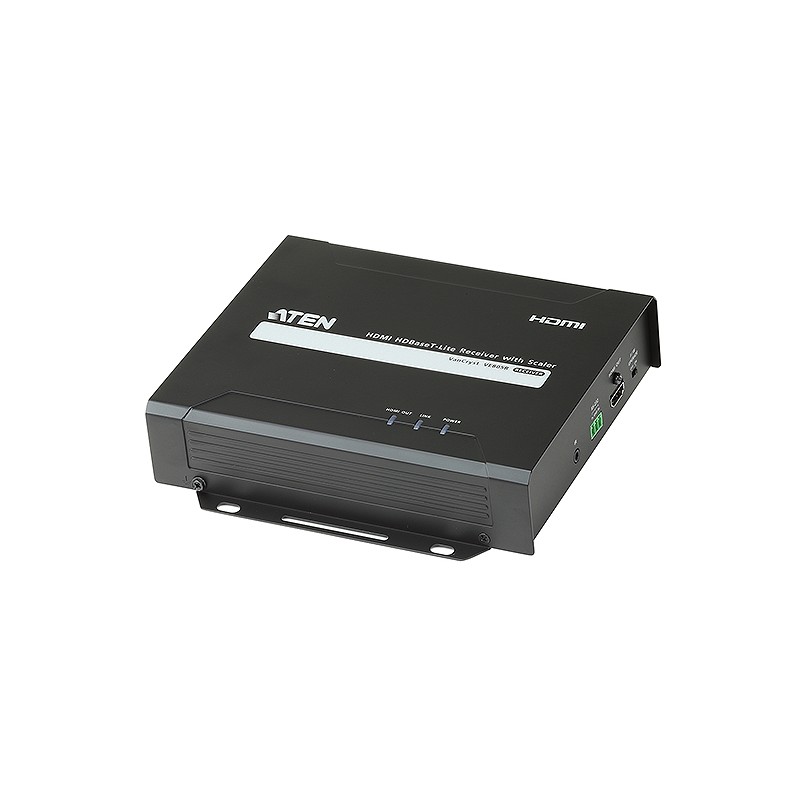

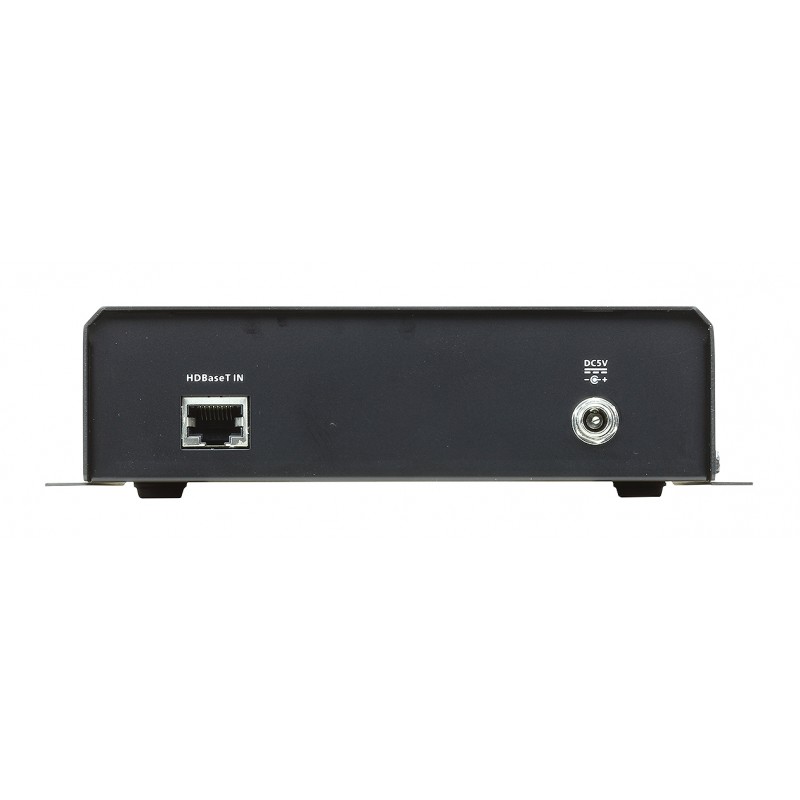

• 1x VE805R HDMI HDBaseT-Lite Receiver with Scaler
• 1x Power Adapter
• 1x IR Transmitter
• 1x IR Receiver
• 1x Terminal Block
• 1x User Instructions
