APPLICATIONS

The HDMI V1.3 Matrix is a great solution for connecting your HDMI devices and sources together, making it more convenient for you to access your content, and thanks to the remote control it’s a flexible device that gives you many options of when and where to play your media. Furthermore, the HDMI V1.3 Matrix can transfer Deep Color video and bit stream digital audio with maximum performance and it supports HDMI 1.3, HDCP 1.1 and DVI 1.0.

• Control multiple sources and displays
• Integrate your home entertainment system
• Multi-tasking and presentations
• Showroom display
• Advertising

FEATURES

• HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant
• Supports digital video formats in Deep Color 12bit and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio
• The HDMI input is compensated, clock phase adjusted, and jitter free so the output signal is as good as a standard HDMI signal
• Supports input source LED indicators on each output
• Compatible with all HDMI sources and displays
• Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480i to 1080p
• Supports RS-232 control
• Supports IR remote control and IR extender
• Dolby Digital, DTS digital audio transmission (32-192 kHz Fs sample rate)
• Supports LPCM 7.1 channels output from each independent HDMI ports
• HDMI cable distance testing showed that with 1080p/8-bit or 12-bit resolution, the input/output distance can be up to 15/15 meters
• Switchable EDID function for choosing the desired resolution to display
• Define HDCP, HDMI and DVI source. The LED will turn on to define the input source's format
• When an HDMI signal progresses through the system, it is re-timed, and level-compensated

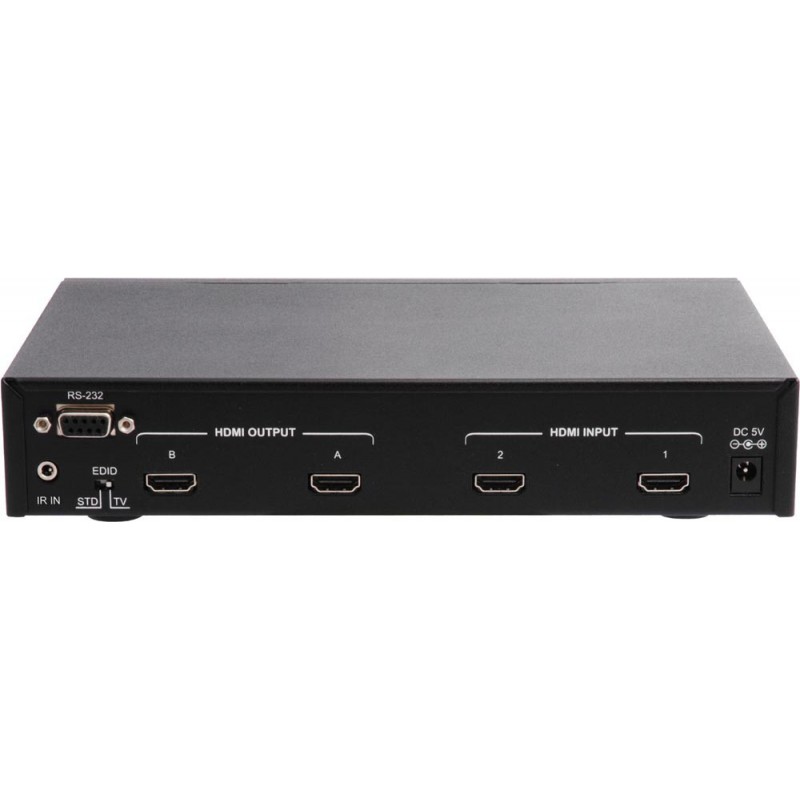

• High performance HDMI 1.3 Matrix of 2 (two) input and 2 (two) output with remote control for you to link with your favorite HDMI devices to enjoy movies, music, or games at the same time
